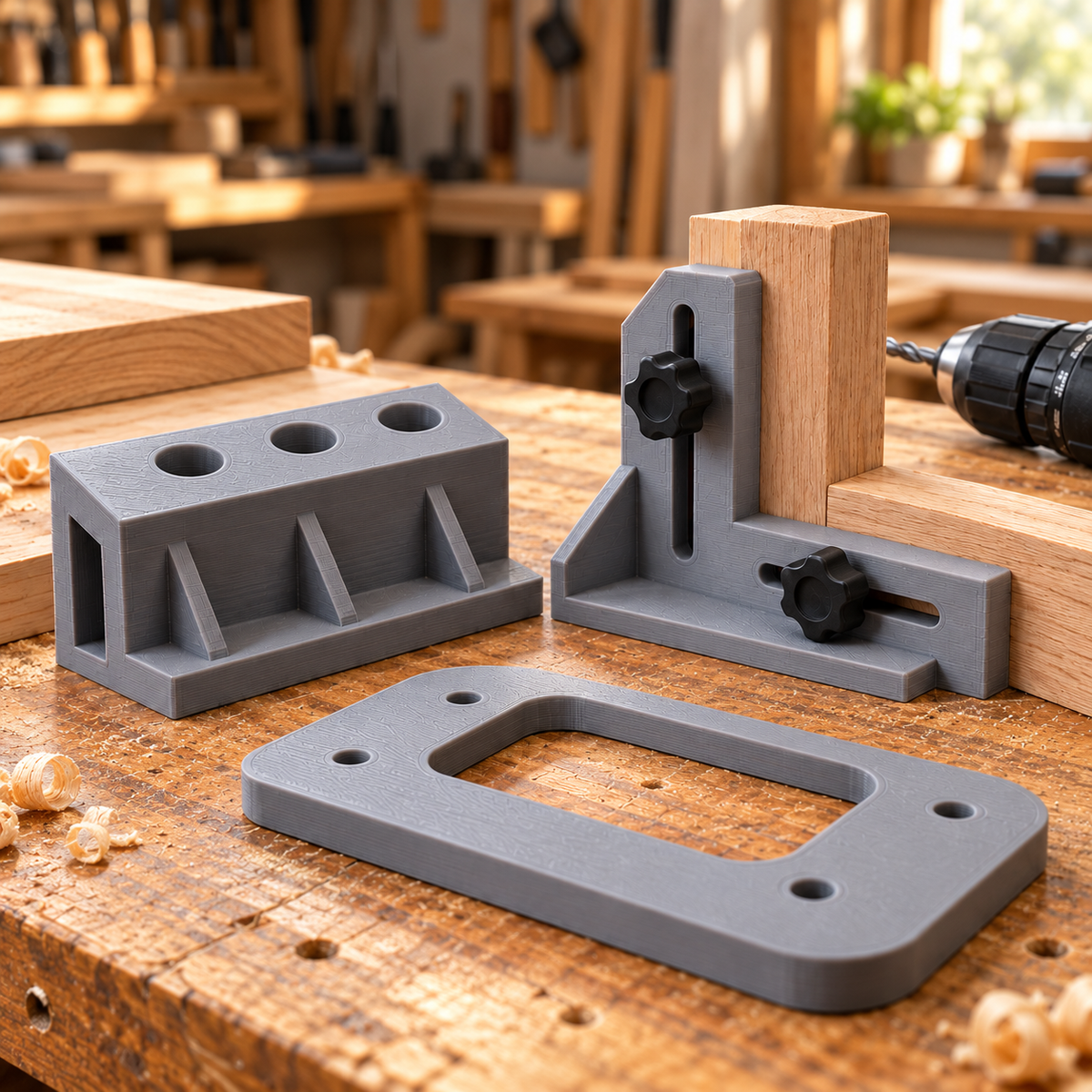

What Are Fabrication Jigs? Practical Uses in Woodworking and Workshop Projects

When a workshop task needs to be repeated accurately, measuring and positioning everything from scratch can become time-consuming. A jig provides a reference that helps you carry out the same operation consistently.

From guiding a router across timber to locating holes or aligning parts during assembly, jigs are useful across woodworking and fabrication. They can be simple workshop-made guides or purpose-built tools designed for a particular job.

What is a jig?

A jig helps guide or locate a tool relative to a workpiece. A drilling jig, for example, positions the drill so holes can be made in the intended locations.

A fixture primarily holds and locates the workpiece. The terms are often used loosely in workshops, and some designs perform both functions.

The practical purpose is similar: reduce uncertainty about where a part or tool should go.

Why use a jig in fabrication?

Repeatable positioning

A jig provides a consistent reference for repeated operations. Instead of marking every part separately, you can position each workpiece against the same guide or stop.

This is useful when making matching components, locating hardware or assembling several copies of a project.

Less repeated setup

A well-designed jig can reduce the measuring and adjustment required between parts. There is still an initial setup, but that preparation can make subsequent operations more straightforward.

Consistency between components

Parts that need to fit together benefit from consistent hole positions, profiles and alignment. A jig can help achieve that consistency, provided it is accurately made and used correctly.

Support for awkward tasks

Some parts are difficult to position by hand. A suitable jig or fixture can provide a stable reference, but it must be designed around the forces involved and securely mounted.

A jig does not replace guards, clamps or the safe operating procedures for the tool.

Router jigs in woodworking

Routers can cut grooves, recesses, edges and profiles in timber. A router jig helps control where the router travels or where the cut is made.

Common examples include templates for repeated shapes, guides for recesses, circle-cutting jigs and sleds used for flattening workpieces.

Template routing

A template defines a shape that the router follows using a compatible guide bush or bearing-guided cutter.

This can be useful when making several parts with the same outline. The template needs to be securely attached, and its design must account for the relationship between the guide and cutter.

A guide bush may introduce an offset between the template edge and the finished cut. That offset needs to be included in the design rather than assumed away.

Recess and hardware-location jigs

A jig can define the position and boundaries of a recess for suitable hardware or another fitted component.

The benefit is repeatable placement. However, the jig still needs to match the hardware, router setup and intended cutting depth.

Circle-cutting jigs

A circle-cutting jig controls the router’s movement around a pivot point. This helps produce circular cuts without relying on freehand movement.

Compatibility, secure attachment and the tool manufacturer’s instructions remain important.

Drilling and hole-positioning jigs

Drilling jigs help locate holes relative to an edge, centreline or another feature.

They can be useful for repeated hardware positions, matching components and assembly tasks. Where a drill contacts the guide, wear needs to be considered. Some designs use suitable drill bushings rather than relying on the jig material itself as the drilling surface.

A worn guide can affect positioning, so inspection is part of maintaining repeatability.

Assembly and alignment fixtures

Not every workshop aid guides a cutting tool. Some hold parts in position during assembly.

Examples include guides that align an edge, fixtures that maintain spacing and supports that hold components at a particular angle.

These aids can make a process easier to repeat, but clamping force and workpiece movement still need to be considered. A lightweight positioning guide should not be treated as a heavy-duty clamp.

Where can 3D printing fit?

3D printing can be useful for developing task-specific guides, locating aids and prototype jigs.

A digital design can be adjusted to suit a particular component or spacing requirement. This makes it useful for testing a concept before committing to a more involved manufacturing process.

However, a printed jig is not automatically suitable for every fabrication task.

Material, stiffness, layer orientation, wear, heat and mounting all affect performance. Designs exposed to cutting tools or significant forces may need metal bushings, reinforcement, other materials or a different manufacturing method altogether.

A printed positioning aid and a router-guiding jig have different demands. Each needs to be assessed for its intended operation.

What makes a useful jig?

Start with a clearly defined task

Decide what the jig must locate, guide or hold. Include the workpiece dimensions, tool setup and required result.

Check compatibility

For a router jig, consider the router base, guide bush or bearing arrangement, cutter and available clearances. For drilling, consider the drill size and how the guide will resist wear.

Provide secure mounting

Plan how the jig and workpiece will be secured. Neither should rely on being held close to a cutting tool by hand.

Test on scrap material

Check the setup on an appropriate test piece before using it on the final workpiece. Confirm positioning, clearances and the resulting dimensions.

Inspect for wear or damage

Cracks, distortion, loose mounting points and worn guide surfaces can affect performance. Stop using a jig if its condition compromises the setup.

Follow the tool manufacturer’s instructions

A jig should support a safe working method, not override it. Keep guards and other required safety measures in place.

Developing jig ideas at FarmFab3D

Jigs and workshop guides are an area we’re exploring at FarmFab3D, with an interest in practical woodworking and fabrication tasks.

Our approach starts with the job itself: what needs to be positioned, what must repeat, and what forces or wear will the guide encounter?

As this area develops, we’ll share projects and design considerations here in Projects & Guides.

Do you have a workshop task that involves repeatedly measuring, aligning or positioning the same part? Tell us about the process, the tool you use and the result you’re trying to achieve. Those details are a useful starting point for exploring a jig design.
