Lift-Off Offset Hinges – A Custom Solution for Better Cabinet Access

Every now and then a project comes along where an off-the-shelf solution simply doesn't exist.

This Lift-Off Offset Hinge project started with a cabinet that required full access behind a removable perspex panel. Standard hinges would allow the panel to swing open, but they would still leave the door attached and limit access to the equipment inside.

The solution was to design a custom lift-off hinge system that allows the entire panel to be removed in seconds.

The Design Challenge

The requirements were straightforward:

• Compact overall size

• Offset mounting arrangement

• Smooth hinge operation

• Ability to completely remove the panel without tools

• Strong enough for repeated use

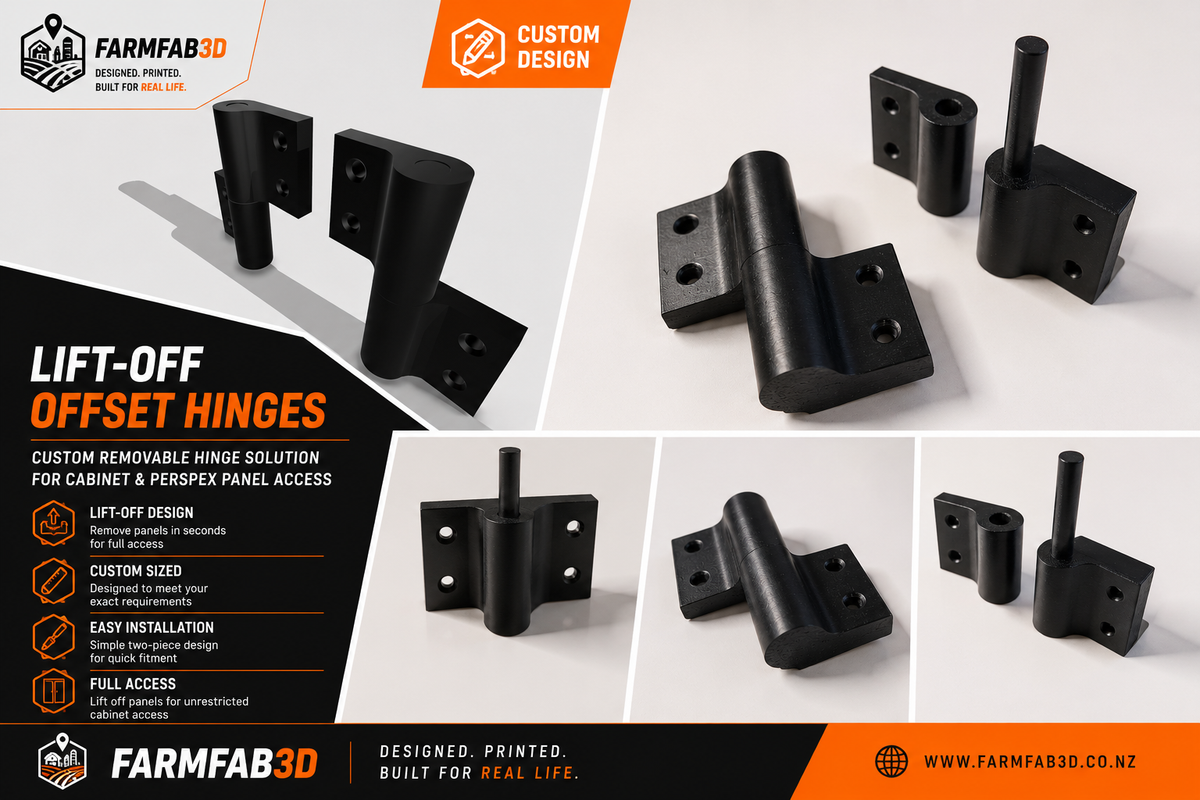

The hinge was designed as a two-piece assembly consisting of a hinge pin section and a matching receiver section. Once installed, the panel can be lifted vertically and removed whenever unrestricted access is required.

Design Features

• Lift-off design for quick removal

• Offset mounting configuration

• Simple two-piece construction

• Clean appearance

• Easy installation

• Custom sizing to suit the cabinet

From CAD to Finished Part

The hinge was first modelled in CAD to ensure correct clearances and alignment. Once the geometry was confirmed, prototypes were printed and tested for fit and operation.

The final design provides a neat and practical solution while maintaining a professional appearance.

Real-World Applications

Although designed for a specific cabinet, this style of hinge could be adapted for:

• Equipment enclosures

• Control cabinets

• Electrical panels

• Perspex access doors

• Workshop storage systems

• Machine guards

• Display cases

Built for the Job

This project is a great example of how custom 3D printing can solve unique engineering and workshop challenges where standard hardware falls short.

At FarmFab3D, we enjoy creating practical solutions that make equipment easier to use, maintain and access.
